1000L Paddle Powder Mixing Machine 48-97 RPM SUS304

Name: 1000L Paddle Powder Mixing Machine 48-97 RPM SUS304
Brand: Jiangyin Baoli Machinery Manufacturing Co., Ltd.
Price: 2 USD
Availability: InStock

Brand Name:	BOLIMILL
MOQ:	1
preço:	$2,000

Detail Information

Product Description

Detail Information

Lugar de origem:

Jiangsu, China

Certificação:

ISO CE

Tipo de misturador:

Raddle

Volume de barril:

1000 litros

Velocidade do eixo:

48 - 97 rpm

Peso:

1300 kg

Material:

SUS304, SUS304L, SUS316, SUS316L

Tensão:

220-660V

Poder:

11 KW

Max Loading Volume:

650 litros

Capacidade máxima de carga:

65%

Capacidade Eficiente:

100-10000 litros

Conduzir a energia:

3KW-55KW

Tempo de mistura:

3-15 minutos

material processado:

Plásticos, produtos químicos, alimentos

Componentes principais:

motor, engrenagem, vaso de pressão, caixa de engrenagens, bomba, plc, rolamento, motor

Controle de descarga:

Auto-bloqueio manual, acionado por pneumático, acionado elétrico

Destacar:

1000L paddle powder mixer

SUS304 powder mixing machine

48-97 RPM mixing equipment

Product Description

Yeast Powder Mixer Machine - Plough Shear Blender for Seasoning & Ice Cream Powder

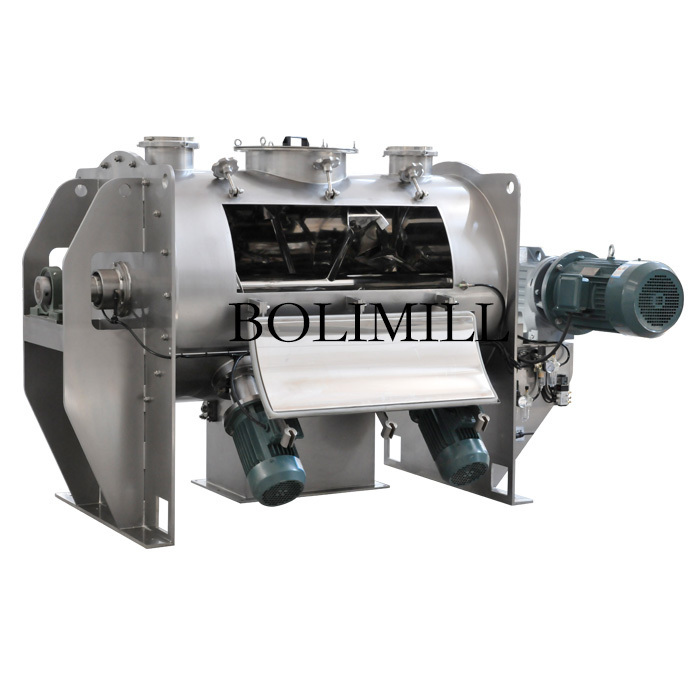

The plough shear mixer consists of a cylindrical drum containing plough-shaped mixing elements mounted on a horizontal shaft. The agitator's central shaft features welded/bolted arms with specialized plough-shaped mixing elements that give the machine its name. Optional high-speed choppers can be added to disperse agglomerations and control granulation during mixing.

Key Functions

The plough mixer creates continuous material flow through high-speed three-dimensional movement. Centrifugal vortex action ensures thorough mixing of dry powders, granules, small fibers, and low-viscosity liquids/pastes.

Discharge Control Options

Manual self-lock mechanism
Pneumatic driven system
Electric driven operation

Performance Specifications

Capacity range: 100-10,000 liters
Power: 3kW-55kW
Mixing time: 3-15 minutes
Interchangeable mixing agitators
Easy adjustment capabilities

Standard Features

Flange connection system
Quick-opening feeding inlet
Integrated exhaust port
Accessible cleaning doors

Technical Specifications

Packaging & Delivery

We provide professional, environmentally friendly packaging to ensure safe transportation of your equipment.

Manufacturer Profile

Jiangyin Baoli Machinery Manufacturing Co., Ltd. (established 2004) specializes in industrial mixing equipment with global distribution to Southeast Asia, Europe, America, Oceania, Middle East, and Africa markets.

Certifications

After-Sales Support

Frequently Asked Questions

Location: Wuxi City (30 minutes from Shanghai by train)

Alibaba Gold Supplier with 10+ years experience
15+ years manufacturing history
Certifications: CE, ISO, BV
Regular participation in international expos (FIC, CPHI, API)

Inquiry Checklist

For efficient quotation, please provide:

Material type and dryness level
Feed material particle size
Required capacity (kg/h)
Material density
Voltage requirements (380V 50Hz 3P standard)
Material contact surface preference (304 or 316 stainless steel)
